Product Description:

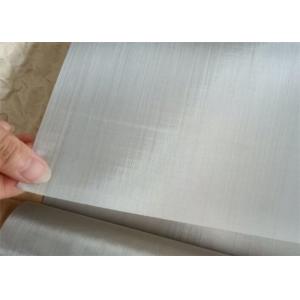

Stainless steel mesh is produced by processing metal wires such as
304, 304L, 316, 316L, 310, and 310s. It has a smooth surface and is
resistant to rust, corrosion, and is non-toxic, making it a e and
environmentally friendly option.
This type of mesh is commonly used in hospitals for various
applications such as filtering and screening, as well as in the
production of items like pasta, meat barbecue, living baskets, and
fruit baskets. It is also utilized in various industries for its
filtering and screening capabilities.
Features:
Material: 302, 304, 304L, 316, 316L, 310, 430, etc.
High tension: Our stainless steel wire mesh boasts a significantly
higher tension compared to common polyester mesh. This results in
smooth and even tension across the entire screen.
Super precision: Our wire mesh is carefully manufactured to have a
uniform wire diameter and aperture, with an extremely low
difference. This allows for precise and accurate printing results.
Low elongation: Our wire mesh has very low elongation, even when
under high tension. This means that the mesh maintains its shape
and will not stretch, ensuring consistency in printing.
Anlistatic: Our wire mesh is designed to avoid the effects of
static, ensuring the ety of the printing process.
High elasticity: Our stainless steel wire mesh is highly elastic,
and will not lose its elasticity even when under extreme tension.
Hot melt: Our stainless steel wire mesh has special features that
make it suitable for hot melt ink, resulting in high-quality and
efficient printing.
High corrosion resistance: Our wire mesh has excellent corrosion
resistance, surpassing that of polyester fiber. This ensures its
durability and longevity, even in harsh printing environments.
Good solvent resistance: Our wire mesh can withstand the effects of
various solvents, ensuring the quality and accuracy of printing.
Technical Parameters:
Materials
Our company offers a wide range of materials for wire mesh,
including:
- Stainless steel
- Copper
- Brass
- Phosphor-bronze
- Special alloys
- Nickel wire mesh
- Titanium wire mesh
- Monel wire mesh
- Molybdenum wire mesh
- Tungsten wire mesh
- Zirconium wire mesh
- Tantalum wire mesh
- Haynes wire mesh
- Hastelloy wire mesh
- Inconel wire mesh
- Incoloy wire mesh
- Nichrome wire mesh
- Kanthal wire mesh
Mesh Openings
Our wire mesh comes in a variety of mesh openings, ranging from
0.003 to 10mm. Other specifications are available upon request.
Wire Diameters
We offer a variety of wire diameters, including:
- 0.010mm
- 0.020mm
- 0.030mm
- 0.040mm
- 0.050mm
- 0.060mm
- 0.070mm
- 0.080mm
- 0.090mm
- 0.100mm
- 0.120mm
- Other specifications available upon request
Widths
Our wire mesh can be produced in widths up to 4000mm. We also offer
the option to cut to specific widths, ranging from 0.05 to 0.99m.
Weaving Types
We offer a variety of weaving types for our wire mesh, including:
- Plain weave
- Twilled weave
- Plain Dutch weave
- Twilled Dutch weave
- Reverse plain Dutch weave
- Reverse twilled Dutch weave
Our experienced team can assist in determining the best weaving
type for your specific needs.
| Mesh/Inch | Wire Diameter | Aperture | Open Area | Weight(LB) /100 Square Foot |
| Inch | MM | Inch | MM | | |
| 1x1 | .080 | 2.03 | .920 | 23.37 | 84.6 | 41.1 |
| 2X2 | .063 | 1.60 | .437 | 11.10 | 76.4 | 51.2 |
| 12X12 | .020 | .508 | .063 | 1.60 | 57.2 | 31.6 |
| 14X14 | .023 | .584 | .048 | 1.22 | 45.2 | 49.8 |
| 30X30 | .009 | .229 | .0243 | .62 | 53.1 | 16.1 |
| 35X35 | .011 | .279 | .0176 | .45 | 37.9 | 29.0 |
| 40X40 | .010 | .254 | .0150 | .38 | 36.0 | 27.6 |
| 80X80 | .0065 | .165 | .0060 | .15 | 23.0 | 23.2 |
| 100X100 | .0035 | .089 | .0065 | .17 | 42.3 | 8.3 |
| 110X110 | .0040 | .1016 | .0051 | .1295 | 30.7 | 12.4 |
| 120X120 | .0037 | .0940 | .0064 | .1168 | 30.7 | 11.6 |
| 150X150 | .0026 | .0660 | .0041 | .1041 | 37.4 | 7.1 |
| 160X160 | .0025 | .0635 | .0038 | .0965 | 36.4 | 5.94 |
| 180X180 | .0023 | .0584 | .0033 | .0838 | 34.7 | 6.7 |
| 200X200 | .0021 | .0533 | .0029 | .0737 | 33.6 | 6.2 |
| 250X250 | .0016 | .0406 | .0024 | .0610 | 36.0 | 4.4 |
| 270X270 | .0016 | .0406 | .0021 | .0533 | 32.2 | 4.7 |
| 300X300 | .0051 | .0381 | .0018 | .0457 | 29.7 | 3.04 |
| 325X325 | .0014 | .0356 | .0017 | .0432 | 30.0 | 4.40 |
| 400X400 | .0010 | .0254 | .0015 | .370 | 36.0 | 3.3 |
| 500X500 | .0010 | .0254 | .0010 | .0254 | 25.0 | 3.8 |
| ... | ... | ... | ... | ... | ... | ... |
Applications:
Stainless Steel Wire Mesh Filter
Product Description:
The Stainless Steel Wire Mesh Filter from Yuanhai is a high quality
and durable product that is widely used in various industries for
its excellent filtering performance. Made from premium quality
stainless steel wire, this filter is known for its strength,
corrosion resistance, and longevity. It is available in different
sizes and wire diameters to suit the specific needs of different
applications.
Brand Name:
Yuanhai
Model Number:
YH-008
Place of Origin:
Hebei Province, China
Certification:
ISO9001:2015
Minimum Order Quantity:
5 Rolls
Price:
Negotiation
Packaging Details:
By pallet or as demand
Delivery Time:
According to quantity
Payment Terms:
TT/LC
Supply Ability:
10000m²/5 DAYS
Customized:
Accept
Port of Loading:
Xingang Port
Sample:
For Free
Wire Diameter:
0.010 To 1.20mm
Product Application:
The Stainless Steel Wire Mesh Filter is widely used in various
industries such as oil and gas, chemical, food and beverage,
pharmaceutical, and many others. Its versatility makes it suitable
for both industrial and household applications. Some of its common
uses include:
- Separation and filtration of solids and liquids
- Straining and sieving of powders and granules
- Air and water filtration
- Screening and sorting of materials
- Protection and reinforcement of buildings and structures
Product Features:
- High strength and durability
- Excellent corrosion resistance
- Accurate and uniform openings for efficient filtration
- Easy to clean and maintain
- Available in various sizes and wire diameters
- Customizable according to specific needs
- Can withstand high temperatures and pressure
- Long service life
Product Advantages:
- Made from premium quality stainless steel wire for maximum strength
and durability
- Manufactured using advanced weaving technology for accurate and
uniform openings
- Strict quality control measures ensure high quality and consistent
performance
- Customizable according to specific needs and applications
- Competitive pricing and flexible payment terms
- Quick and efficient delivery
- Free samples available for customer evaluation
- Excellent customer service and technical support
Conclusion:
The Stainless Steel Wire Mesh Filter from Yuanhai is a reliable and
versatile product that offers excellent filtering performance for a
wide range of applications. Its high quality, durability, and
customization options make it a popular choice among industries and
households. With competitive pricing, efficient delivery, and
excellent customer service, Yuanhai is the ideal supplier for all
your stainless steel wire mesh needs.
FAQ:
- Q: What is the brand name of this product?
A: The brand name of this product is Yuanhai. - Q: What is the model number of this product?
A: The model number of this product is YH-008. - Q: Where is this product produced?
A: This product is produced in Hebei Province, China. - Q: Does this product have any certification?
A: Yes, this product is certified with ISO 9001:2015. - Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 5 rolls. - Q: Is the price negotiable for this product?
A: Yes, the price for this product is negotiable. - Q: How is this product packaged?
A: This product is packaged by pallet or as per customer's demand. - Q: What is the average delivery time for this product?
A: The average delivery time for this product varies based on the
quantity ordered. - Q: What are the payment terms for purchasing this product?
A: The payment terms for purchasing this product are TT/LC. - Q: What is the supply ability for this product?
A: The supply ability for this product is 10000m² in 5 days.
